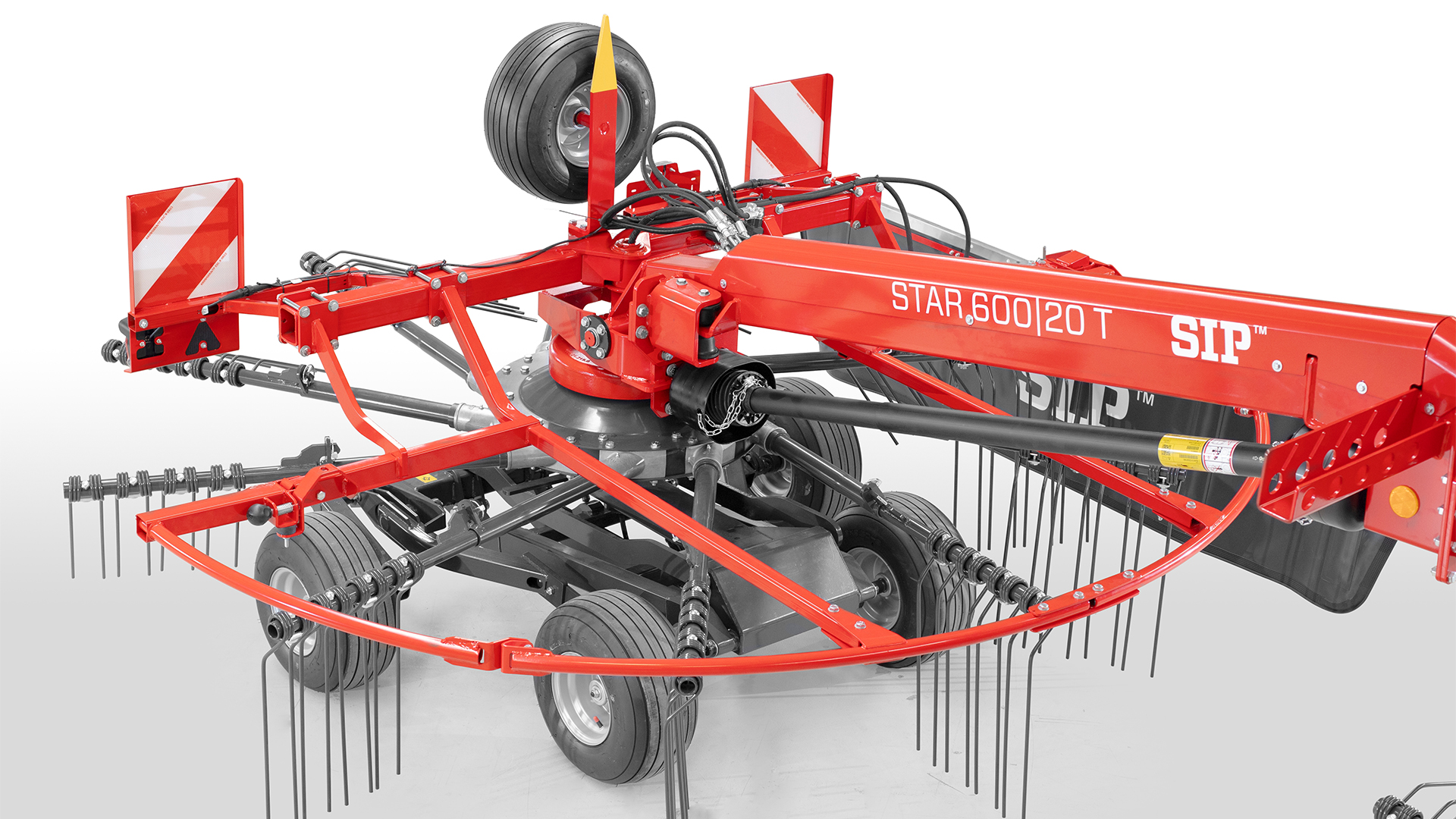

The trailed two-rotor rake delivers two single swaths or one double swath on the left side. The walking tandem axle with parallelogram mounting ensures smooth and even raking and transport speeds of up to 30 km/h.

GET A QUOTE
FIND A DEALER
SUBSCRIBE TO SIPINFORMER

EASY ROTOR HEIGHT ADJUSTMENT

Easy and simple rotor height adjustment with a threaded bolt.

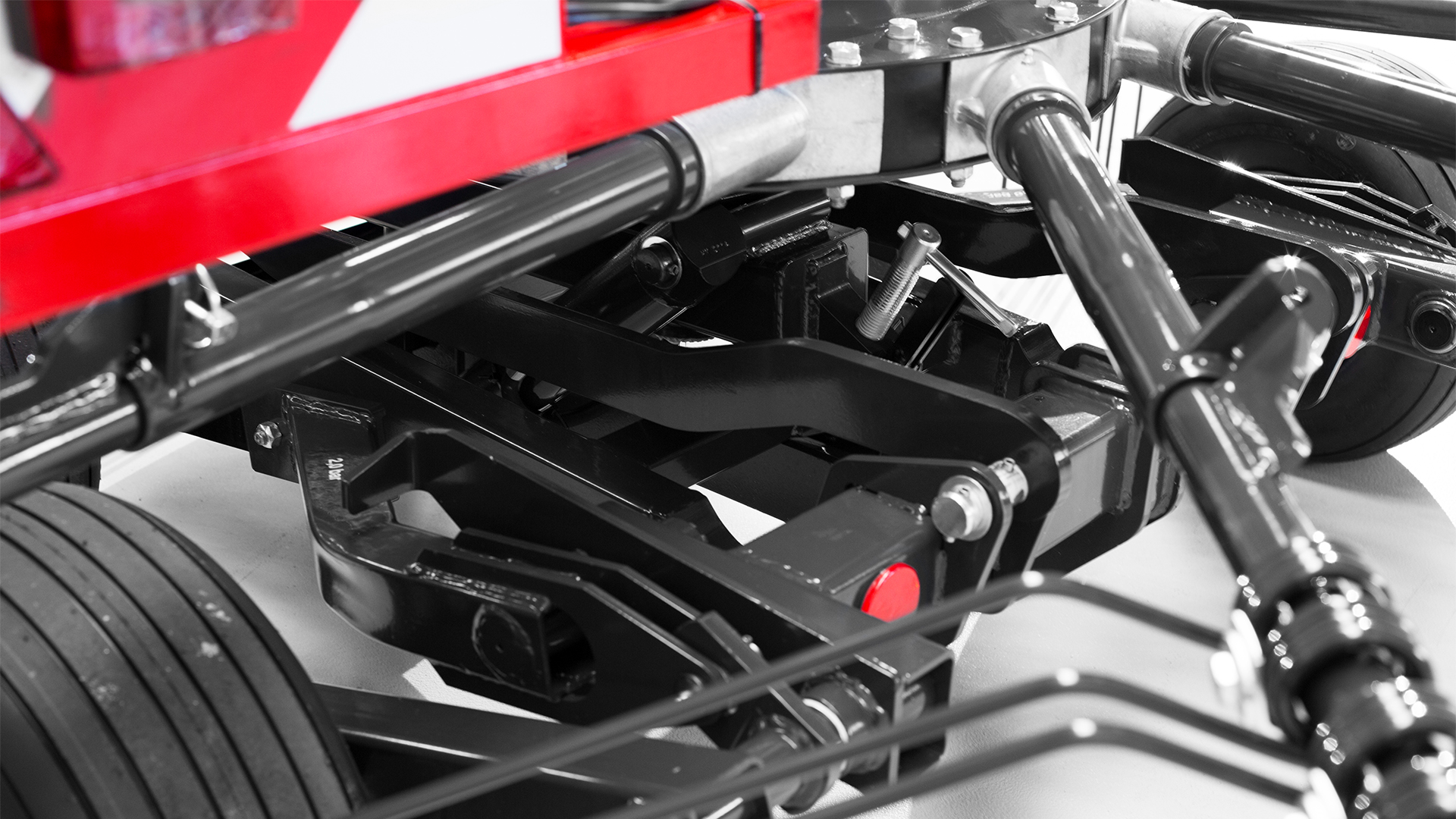

SIP WALKING TANDEM

All rakes are equipped as a standard with a SIP walking tandem axle for optimal adaptation to terrain, higher working speeds, and lower load transfer to the machine.

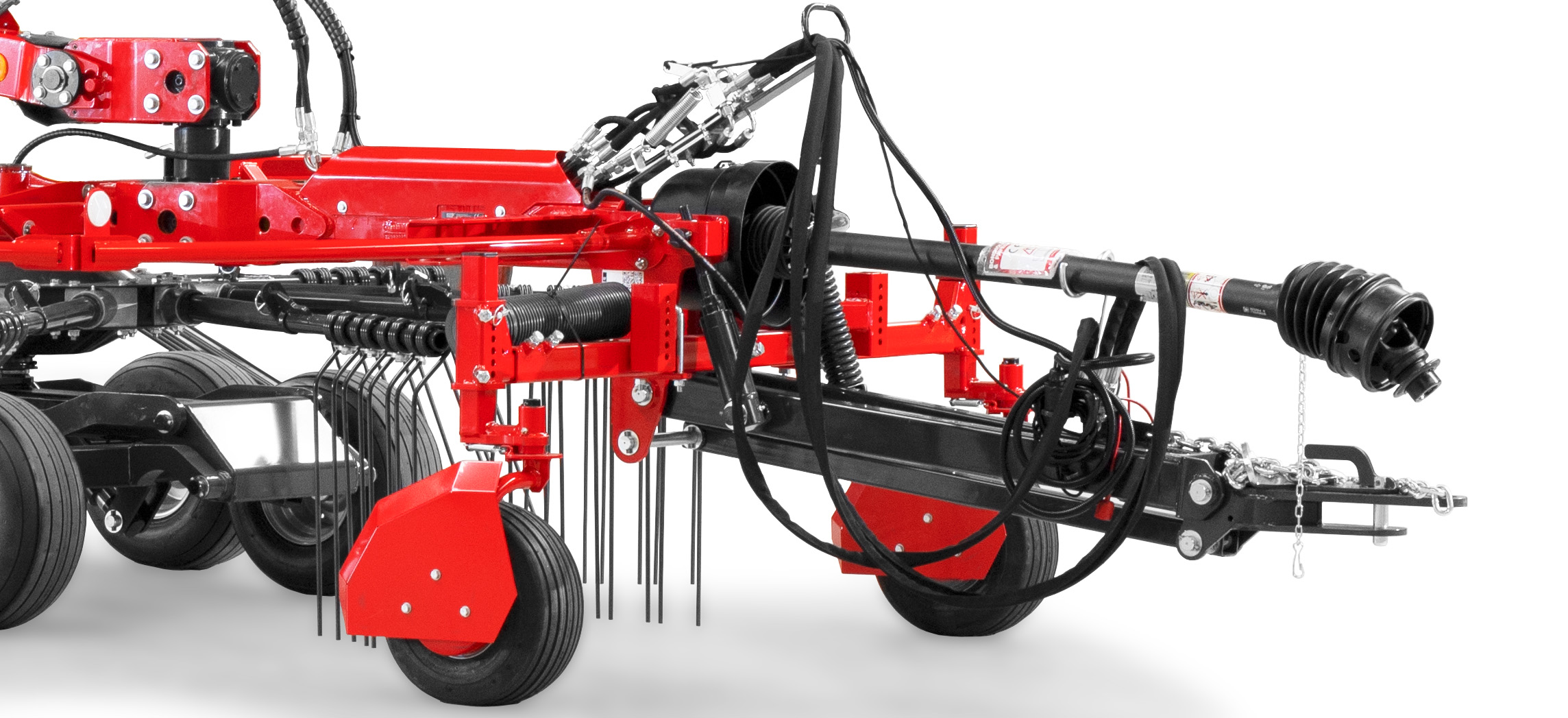

PARALLELOGRAM DRAWBAR

The hitch ring is controlled by parallel linkage. The hydraulic arm on the drawbar maintains the leading rotor parallel to the ground as it is lifted and lowered.

3D MOUNTING OF REAR ROTOR

The 3D pivoting mounting of the rear rotor on the parallelogram frame undercarriage allows perfect ground tracking. The rear rotor is operated hydraulically for quick and efficient raking.

AttributesSerial equipmentCompare models

STAR 600|20 T

Working width

3.4-6.2 m

Swath width

0.6-1.2 m

No. of tine arms per rotor

20

Rotor diameter

2.85 m

PTO rotation speed

540

Recom. PTO rotation speed

350-450

Weight

1480 kg

Power req.

30/40

Capacity

8 ha/h

Transp. height

1.5 m

Transp. width

2.25-2.99 m

Transp. length

7.64-8.23 m

STAR 600|20 T

Hydraulic connection

1x single-acting (1SA), 1x double-acting (1DA)
S

Working height adjustment

Mechanical adjustment
S

Rotor Chassis

Walking tandem
S

Rotor lift

Hydraulic
S

Other

Swath curtain
S

Driveline

PTO shaft with safety clutch
S

Hitch

Parallelogram drawbar
S
Product titleSTAR 600|20 T
Working width3.4-6.2 m
Swath width0.6-1.2 m
No. of tine arms per rotor20
Rotor diameter2.85 m
PTO rotation speed540
Recom. PTO rotation speed350-450
Weight1480 kg
Power req.30/40
Capacity8 ha/h
Transp. height1.5 m
Transp. width2.25-2.99 m
Transp. length7.64-8.23 m
Hydraulic connection1x single-acting (1SA), 1x double-acting (1DA)
Working height adjustmentMechanical adjustment
Rotor ChassisWalking tandem
Rotor liftHydraulic
OtherSwath curtain
DrivelinePTO shaft with safety clutch
HitchParallelogram drawbar
