Products / Tedders – SPIDER / SPIDER ROBUST / SPIDER 815|8

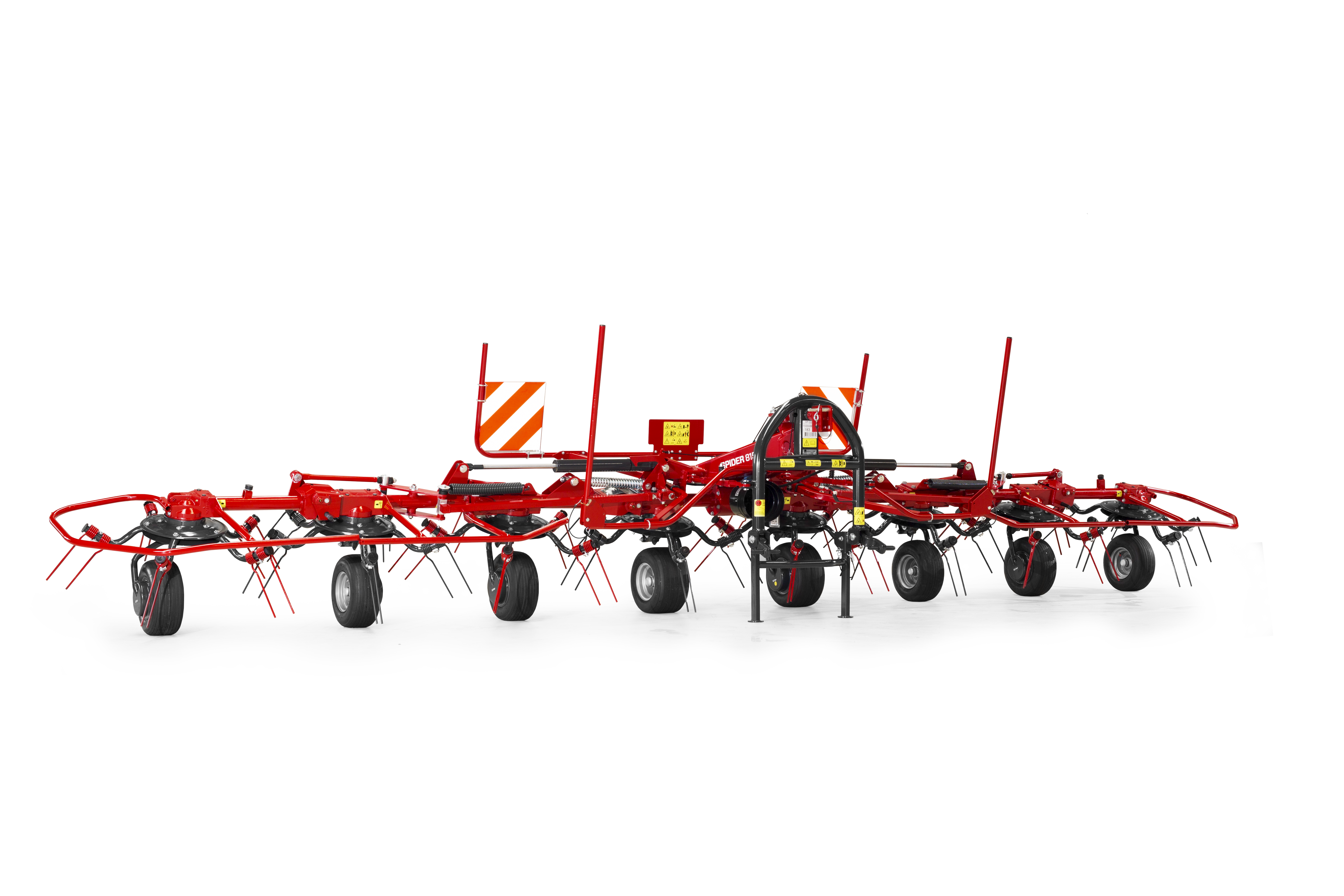

The SPIDER 815|8 T HS is a professional eight rotor tedder with a solid construction. It has a pivoting linkage with stabilizers which enables excellent ground contur following. The angle of the rotors can be adjusted depending on the quantity and humidity of the forage. For tedding near the edge of the pasture the wheels can be shifted to ensure the forage remains on the pasture.

This professional 8 rotor tedder offers controlled and stable work on large surfaces. The sophisticated design ensures excellent mobility and adaptation to your needs: from adjustable height to adjustable spreading angles. Its qualities can also be seen in the transport position. The tedder quickly folds in to the transport position, which meets all road regulations and has good road handling capabilities.

Show all benefits
SPIDER 815|8
Working width (m I ft) 7.85
Number of rotors 8
No. of spring tines per rotor 5
Rotor diameter (m) 1.30
Rotor rotation speed (rpm) 201
PTO rotation speed (rpm) 450 - 540
Weight (kg I Ibs) 1085
Tractor power req. (kW/HP) 60/80
Capacity (ha/h I acres/h) 9.5
Angle adjustment 16° - 20°
Safety clutch (Nm) 1020
Attachment 3-pt. pivoting linkage
Machine width (m) 8.17
2.95
2.95
1.90
Tyre size - rotors 16x6,50 - 8
Tyre size - middle rotors (2x) 16X9,50 - 8
Assembly time (h) 5
SPIDER 815|8
ICON

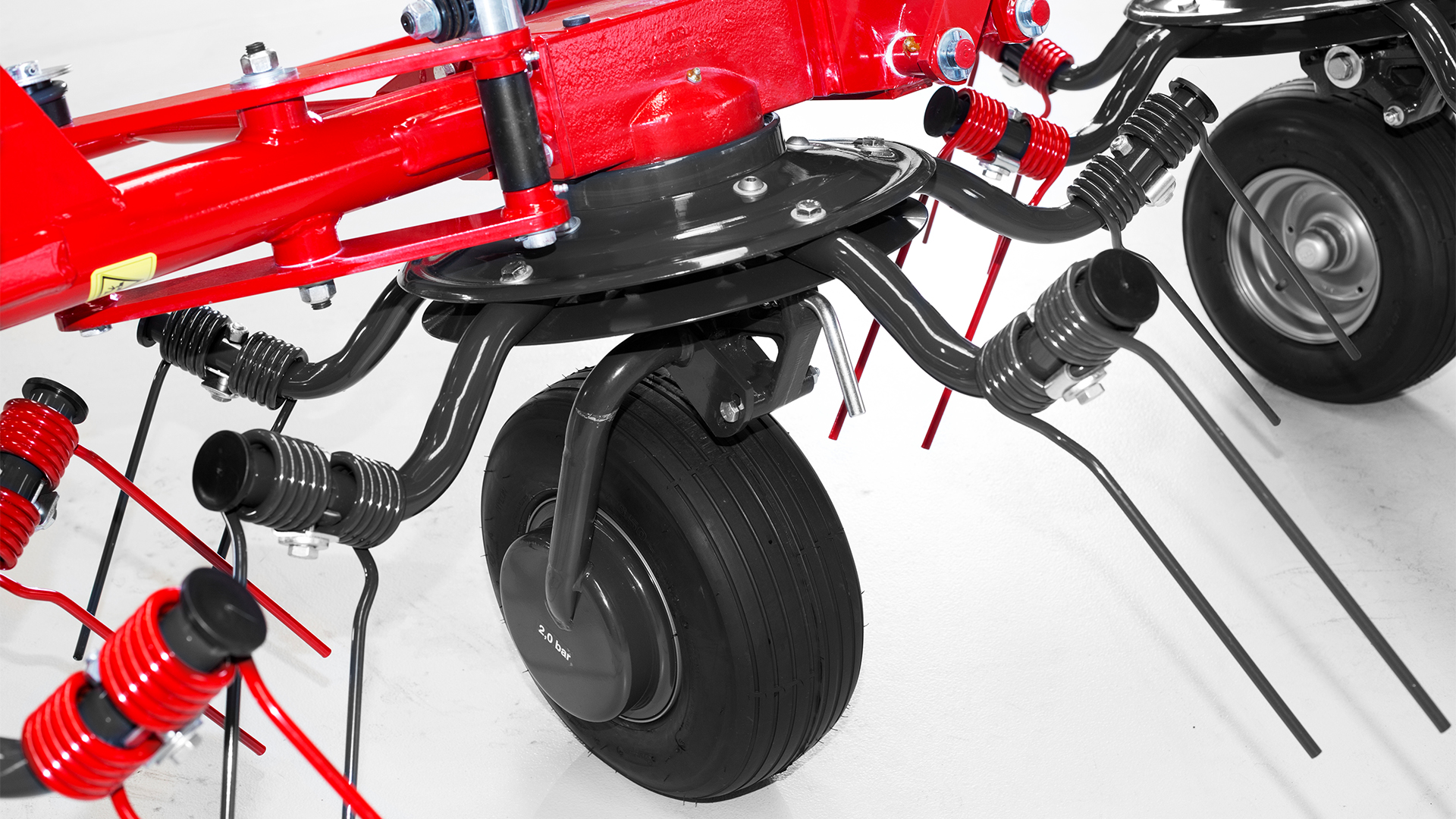

Rotors: Spring tine arms made of high-quality round tubes ICON
Double spring tines made of high-quality spring steel with different shank lengths ICON
ICON
ICON
ICON
SPIDER 815|8

Instructions fo use and Catalog of equipment

Product title
Working width (m I ft)
Number of rotors
No. of spring tines per rotor
Rotor diameter (m)
Rotor rotation speed (rpm)
PTO rotation speed (rpm)
Weight (kg I Ibs)
Tractor power req. (kW/HP)
Capacity (ha/h I acres/h)
Angle adjustment
Safety clutch (Nm)
Attachment
Machine width (m)
Transport width (m I ft)
Transport height (m I ft)
Transport lenght (m I ft)
Tyre size - rotors
Assembly time (h)
Attachment
Tyre size - middle rotors (2x)
Tyre size - transport frame
Rotors: Spring tine arms made of high-quality round tubes
Double spring tines made of high-quality spring steel with different shank lengths
SPIDER 815|8
SIP_Spider815
7.85
8
5
1.30
201
450 - 540
1085
60/80
9.5
16° - 20°
1020
8.17
16x6,50 - 8
5
3-pt. pivoting linkage
2.95
2.95
1.90
16X9,50 - 8
ICON
ICON
ICON
SPIDER 455|4
SIP_Spider455Pro
4,50
4
6
1,60
175
450 - 540
425
15/20
4,50
14° - 18°
900
tritočkovni priklop
4,94
2,90
2,40
1,80
15x6,00 - 6
4
ICON
ICON
ICON
ICON
ICON
ICON
SPIDER 555|4
SIP_Spider455Pro
5,30
4
6
1,70
175
450 - 540
475
15/20
5,50
14° - 18°
900
tritočkovni priklop
5,72
2,95
2,70
2,00
15x6,00 - 6
4
ICON
ICON
ICON
ICON
ICON
ICON
SPIDER 615|6
SIP_Spider615_slika 13 manjka
6.00
6
5
1.30
194
450 - 540
755
33/45
6.2
16° - 20°
900
6.30
15x6,50 - 8
5
3-pt. pivoting linkage
2.82
3.05
1.90
ICON
ICON
ICON
ICON
SPIDER 685|6
SIP_Spider615_slika 13 manjka
6.80
6
6
1.60
175
450 - 540
790
44/60
7.0
14° - 18°
1020
7.30
15x6,50 - 8
5
3-pt. pivoting linkage
2.95
3.60
2.15
ICON
ICON
ICON
ICON
SPIDER 815|8 T
SIP_Spider815
7,85
8
5
1,30
201
450 - 540
1440
45/60
9,50
16° - 20°
1020
Transportni okvir z dvotočkovnim priklopom
8,17
2,98
3,30
3,86
16 x 6,50 - 8
8
16 x 9,50 - 8
10.0/80 - 12
ICON
ICON
ICON
ICON
ICON
ICON
