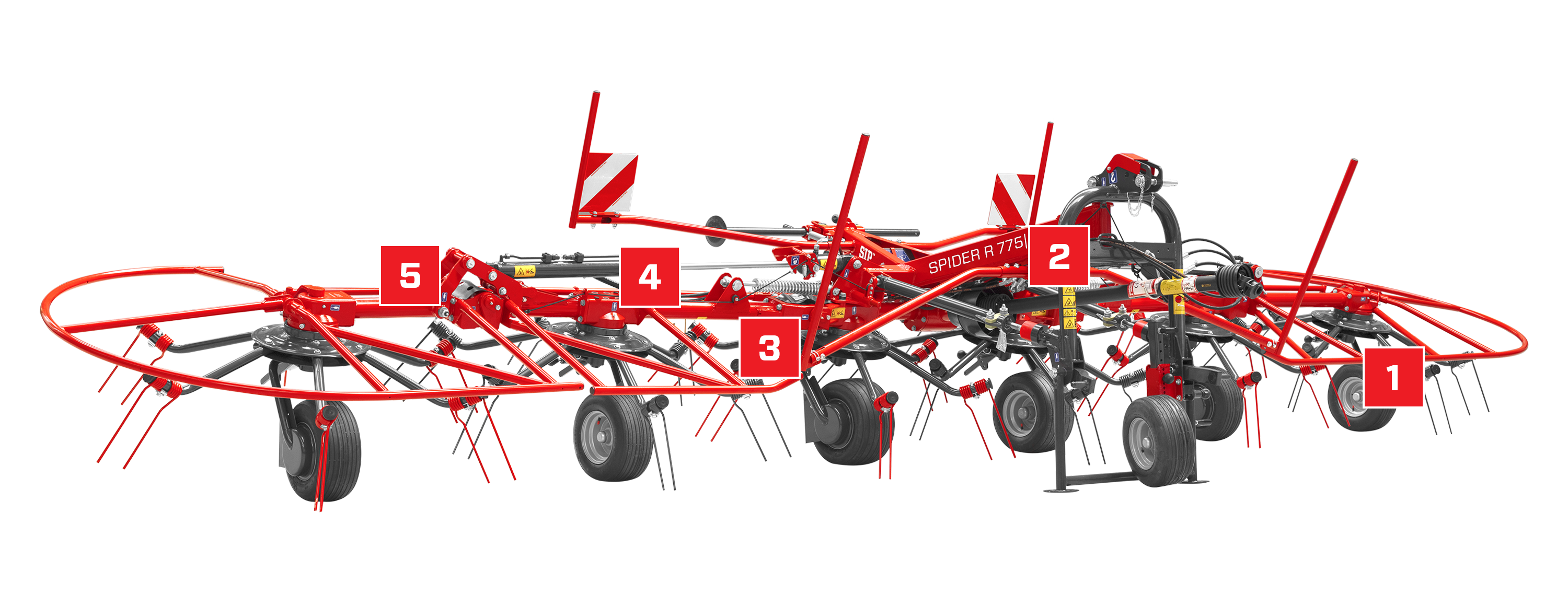

1. The safety pins hold the spring tines in the event of breakage.
  2. Robustly mounted spring tines around the holder.
  3. Spring tine holders made of round tubes.
  4. Main rotor plate made of 4 mm steel.
  5. Lower reinforcement ring.
  6. A round profile in the ROBUST line
  7. Robust casts for gearboxes and gears in semi-liquid grease with a lubricator for quiet and smooth running.
  8. Different lengths of spring tines, with the inner tine shorter than the outer, prevent forage contamination.

With the jockey wheel, the tedder follows the ground one step ahead. This ensures that the working height is always set correctly, the turf is protected, and the spring tines have a longer service life. The additional jockey wheel is especially recommended for working on slopes.

The innovative geometry of the rotors with spring tines of different lengths ensures optimal forage flow and even spreading. Productivity is improved, while forage stays clean.

By setting the spreading angle from 12° to 18°, the spreading pattern can be adjusted to the quantity and moisture of forage. As for the height of the cut, the spring tines can be additionally set by adjusting the height of the hitch.

All tedder models from the ROBUST line are equipped as a standard with the system for hydraulic rotor wheel steering (HS-Hydraulic Steering). When spreading or turning along the edges of the field, the tedder can be shifted left or right. This changes the direction of spreading away from the edge and prevents forage loss. With this system, a small quantity of forage can also be raked into a swath.

The table below determines which tedder matches the working width of your mower to cover 3 or 5 windrows. Covering an odd number of windrows is recommended so the tractor wheels do not drive on the forage. This is important for ensuring forage quality, reducing harvesting losses, and safety on sloping terrain.



TECHNICAL DATA

Number of discs

 5 6 7 8 9

3 windrows

Working width

Model





5,50 m

555|4





6,80 m

685|6



7,80 m

815|8



8,80 m

900|8



10,50 m

1100|10

5 windrows

Working width

Model





9,00 m

915|8

900|8



11,00 m

1100|10



13,00 m

1300|12



15,00 m

1500|14



17,00 m

1700|16*

*Tedder model in development.





GET A QUOTE
FIND A DEALER
SUBSCRIBE TO SIPINFORMER

SPIDER R 775|6 - Mounted tedder with 6 rotors

SPIDER 775|6

Working width

7.6 m

Nr. of rotors

6

Nr. of tine arms per rotor

6

Rotor diameter

1.7 m

Weight

1170 kg

Power req.

60/80

Capacity

8 ha/h

Transp. width

2.98 m

Transp. height

3.75 m

Hydraulic connection

  • 1x single-acting (1SA)
  • 1x double-acting (1DA)

Fenceline tedding

  • HS - Hydraulic steering

Spring tines holders

  • Round tubes

Spring tines

  • Double, different lengths, SUPER-C wire

Shock-absorbers

  • With spring

Driveline

  • PTO shaft with safety clutch
  • 2x double universal joint
  • Finger clutch on outer rotors

Hitch

  • 3-point pivoting linkage Cat. I and II
