DISC HD 1100 D (BASE)

The double mowing combination with an innovative drive system ensures high efficiency and easy maintenance. Advanced technologies, robust design, and excellent performance ensure a quality and reliable solution for all professional users.

GET A QUOTE

FIND A DEALER

SUBSCRIBE TO SIPINFORMER

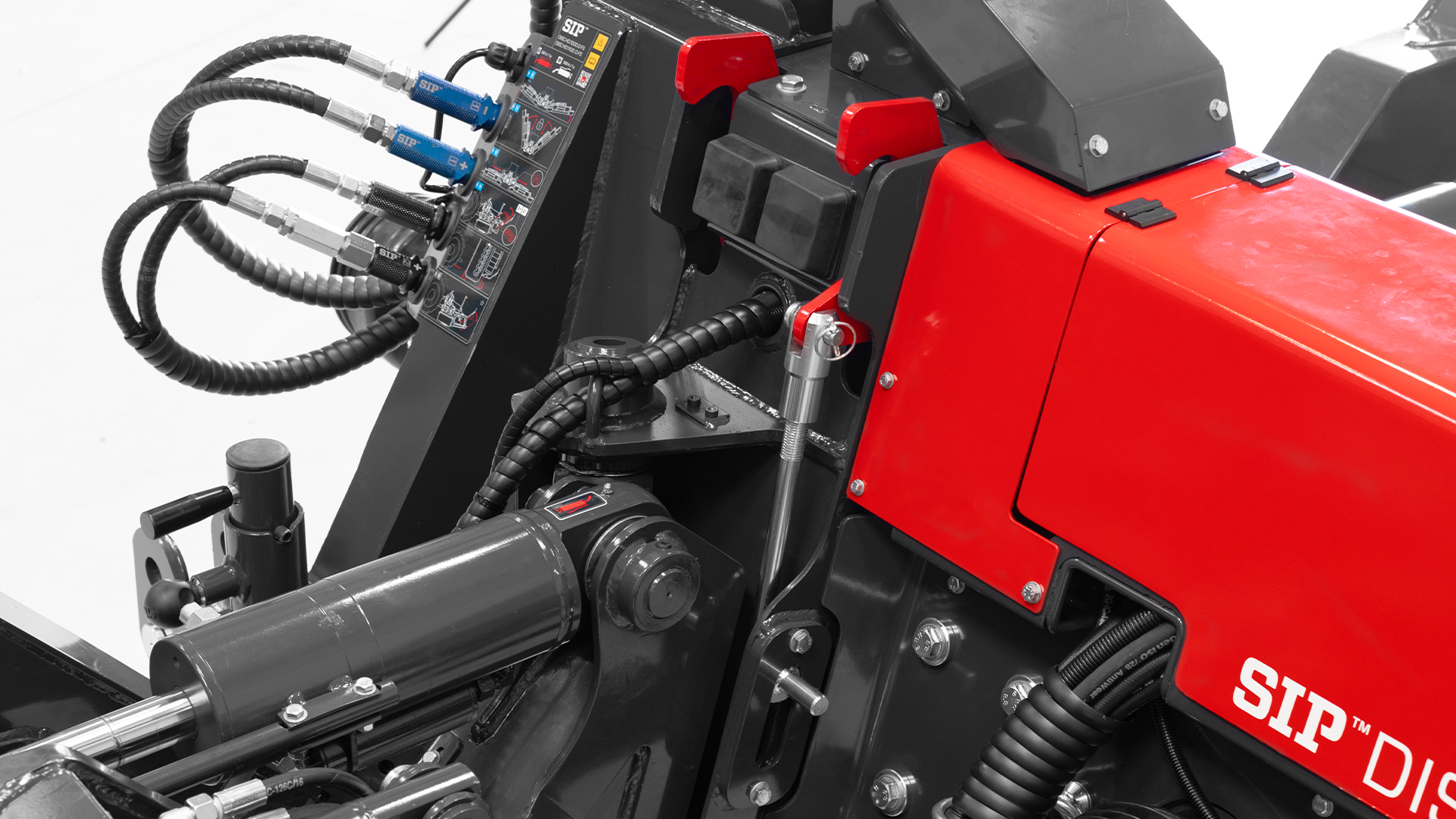

ROBUST 3-POINT LINKAGE

The robust 3-point linkage with a hydro-pneumatic suspension system (HPS) offers excellent responsiveness to changes in terrain.

INNOVATIVE DRIVE SYSTEM

The OMS notification system in combination with safety clutches ensures constant monitoring of operation via sensors, thus preventing damage to the cutter bars.

WORKING WIDTH ADJUSTMENT

The telescopic arms offer the flexibility of the mowing system with a swath width from 1.8 to 3.5 m.

Patented mechanical transport protection

Patented mechanical transport protection triggers automatically and offers exceptional safety during transport and storage.

CONVEYOR BELTS

When using a conditioner, the mower can be upgraded with the installation of conveyor belts for swath delivery. These allow for faster harvesting and reduction of dry matter loss and ash input into the forage.

Easy transport

Easy transport and storage.

Separated Hydraulic Suspension System

The mower is equipped with a hydraulic suspension system, separated for the left and right side which can be easily operated from the tractor.

DISC HD 1100 D (BASE)

Working width

10.05-11.08 m

Nr. of discs

Disc rotation

combined

PTO rotation speed

1000

Weight with FS

3927

Power req.

160/215

Capacity

17 ha/h

Cutting height

40-70 mm

Windrow width

2.1-2.95 m

Conditioner type

Finger steel

Transporter type

Swath width with BC

3.32-4.2

Transp. width

2.88 m

Transp. height

4 m

Transp. length

2.82 m

DISC HD 1100 D (BASE)

Blade Change

QCS - Quick Change System

Hydraulic connection

1x double-acting (1DA)

Other

Patented front protection opening, Hydraulic side protection folding, Spare blades and safety brass pins, Additional wear skids - central

Driveline

Double telescopic PTO, Input PTO shaft with slip and free wheel clutch, Angle drive, Input PTO shaft, Double universal joint

Suspension

Hydro-pneumatic

Hitch

3-point rigid linkage Cat. II

Disc Drive Safety

DDSS with 3 brass pins

Collision Safety

CSS - Hydraulic

Product title	DISC HD 1100 D (BASE)	DISC HD 1000 D (BASE)
Working width	10.05-11.08 m	9.2-10.2 m
Nr. of discs	18	16
Disc rotation	combined	combined
PTO rotation speed	1000	1000
Weight with FS	3927	3740
Power req.	160/215	150/201
Capacity	17 ha/h	15 ha/h
Cutting height	40-70 mm	40-70 mm
Windrow width	2.1-2.95 m	1.7-2.52 m
Conditioner type	Finger steel	Finger steel
Transporter type	/	Belt Conveyor
Swath width with BC	3.32-4.2	2.5-3.38
Transp. width	2.88 m	2.88 m
Transp. height	4 m	4 m
Transp. length	2.82 m	2.82 m
Weight with FS and BC		4350
Power req. with BC		180/240
Blade Change	QCS - Quick Change System	QCS - Quick Change System
Hydraulic connection	1x double-acting (1DA)	1x double-acting (1DA) (BC), 1x double-acting (1DA)
Other	Patented front protection opening, Hydraulic side protection folding, Spare blades and safety brass pins, Additional wear skids - central	Patented front protection opening, Hydraulic side protection folding, Spare blades and safety brass pins, Additional wear skids - central
Driveline	Double telescopic PTO, Input PTO shaft with slip and free wheel clutch, Angle drive, Input PTO shaft, Double universal joint	Double telescopic PTO, Input PTO shaft with slip and free wheel clutch, Angle drive, Input PTO shaft, Double universal joint
Suspension	Hydro-pneumatic	Hydro-pneumatic
Hitch	3-point rigid linkage Cat. II	3-point rigid linkage Cat. II
Disc Drive Safety	DDSS with 3 brass pins	DDSS with 3 brass pins
Collision Safety	CSS - Hydraulic	CSS - Hydraulic
